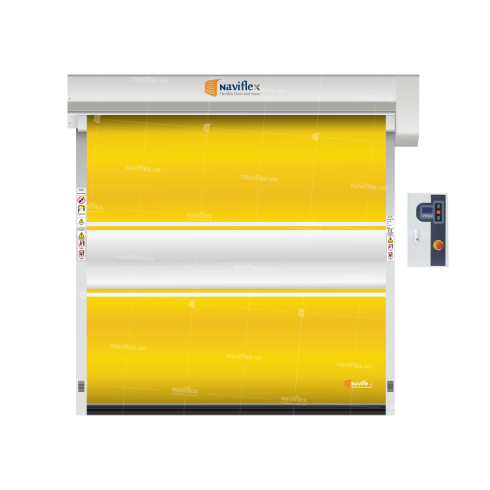

PVC High Speed Door HSD01-NF
HSD01 - NF
Install outside the warehouse or from one workshop/warehouse to another
0.6 - 2.0 (m/s)
15 - 20 days
Road transport
High speed door HSD01-NF is manufactured on demand with European quality standards, considered as a flexible and optimal circulation support solution, minimizing risks and operating costs in warehouses and workshops food processing, seafood…
HSD01-NF is a PVC high speed door series. With the door body made of 2 sides PVC coated Polyester fabric, the door frame is made of galvanized steel or stainless steel (depending on the environment and conditions of the installation area). Doors are installed outside the workshop warehouse or between the separate areas between the workshops.
ADVANTAGES
- Fast opening/closing speed: From min 0.6 – max 2 m / s saves time, and costs, minimizes heat loss and prevents potential risks such as dirt, insects, and food safety…
- Safe when using: Optical sensor mounted on the door rails when there is an obstruction to the door will roll up on its own to ensure safety for users.
- Stable – Durable: The door frame is made of galvanized aluminum alloy, making sure the door is stable, and not shaking when reaching the highest opening and closing speed (1000 times/day).
- Health safety: Curtain material does not contain DOP harmful to health, resists UV radiation, and can be used in environments of 10 degrees Celsius.
- Meet food safety standards: Produced according to European technology standards. Helping the factory to meet the safety standards in production operations: ISO 14000, ISO 45001: 2018, ROHS, HACCP, GMP…
- Easy to use and clean: Diverse and flexible control system such as radar, remote, background sensor, push button … The curtains are easy to clean and clean.
- Modern design, ensure aesthetics.
Specifications
Operations
ACCESSORIES
|
|
|
|
 Air Bag sensor |
|
Electrical cabinets |
Standard optical sensor |
Warning post |
Cold storage sensor |
Remote |
|
Power storage |
Polyester curtain covered PVC |
Motor 0.75 – 2.2kg |
Electrical box protection cabinet |
|
|
|
Wire jerks |
|
Card from |
|
Door rails
Warning lights
Background sensor
INSTALLATION
Technical drawing of High Speed Door HSD01-NF
| H: Clearance height | ≤ 6000 (mm) |
| W: Clearance width | ≤ 4000 (mm) |
Technical drawing of High Speed Door HSD01-NF
| H: Clearance height | ≤ 6000 (mm) |
| W: Clearance width | ≤ 4000 (mm) |
| sT: Space waiting for the top of the door | min: 550 (mm) |
| sS: Space waiting for the door wall on the side with the motor and the electrical cabinet | min: 350 (mm) |
| sR: Space to wait for door wall without motor and electrical cabinet | min: 150 (mm) |
Recovery High Speed Door HSD02-NF is integrated with modern control technology: radar, remote, background sensor, optical sensor, magnetic sensor, push button, interlock… according to European standards, helping the operation simple, safe suitable for many different environments.
Push button
How to operate: press the control button located on the wall to open the door (close and emergency stop). Then move the car through the door, the door will close by itself (self-closing time can be adjusted).
Remote control
How to operate: press the button on the remote to open the door (close and emergency stop). Then move the car through the door, and the door will close by itself (the self-closing time can be adjusted).
Wire jerks
How to operate: pull the control cord located in front of the door to open the door. Then move the car through the door, and the door will close by itself (the self-closing time can be adjusted).
Background sensor
How to operate: drive the forklift to the sensing area (size required) to open the door. Then move the car through the door, and the door will close by itself (the self-closing time can be adjusted).
Motion sensor
How to operate: when the car or person reaches the motion sensor area in front of the door, the door will move and open the door. Then move the car through the door, and the door will close by itself (the self-closing time can be adjusted).
Electromagnetic lock
How to operate: Use a magnetic card or hand sensor to open the door. Then move the car through the door, and the door will close by itself (the self-closing time can be adjusted).
Packaging & Delivery
Packing in wooden/cotton/PE film carton.
