High Speed Spiral Doors HSD06-NF
HSD06 - NF
Used in the main door area, where there is a frequent transportation of goods in and out.
1 - 2 (m/s)
15 - 20 days
Road transport
High Speed Spiral Doors HSD06-NF are manufactured on demand with European quality standards, considered as a solution to support flexible circulation, prevent cold air loss at logistics warehouses, manufacturing plants, processing areas variable…

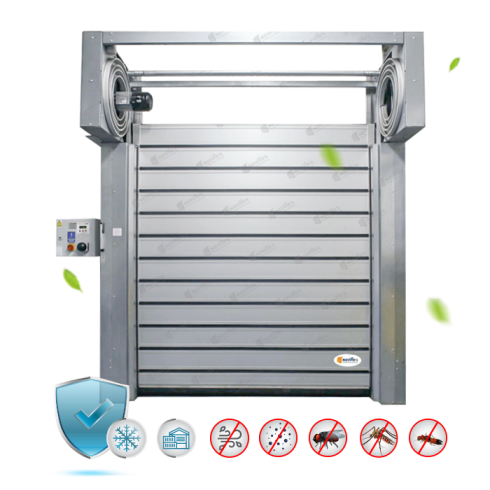

High speed door HSD06-NF is a series of rolling doors with shaped aluminum spokes. A security solution with fast opening and closing speed with high frequency for deep cold storage, with the advantage of the fast opening and closing speed (0.6 – 1.2m / s). Helps minimize heat loss, reduce risks from environmental factors, and reduce operating costs. The door can be installed in the main door area, where there is a lot of circulation in cold storage factories, food processing areas, and pharmaceuticals…
ADVANTAGES
- Fast opening/closing speed: From min 0.6 – max 1.2 m / s, operating frequency 2000 times/day. Help save time, and costs, minimize heat loss, prevent potential risks such as dirt, insects, food safety…
- Health safety: Curtain material does not contain DOP harmful to health, resists UV radiation, and can be used in environments of -15 to +50 degrees Celsius.
- Good wind resistance: Wind resistance, security, heat loss prevention, and insect and dust intrusion, help the vehicle move back and forth easily. (Open / close automatically depending on the suitable opening/closing device selection).
- Safety assurance: Emergency notification system when there is a problem, easy to open by hand if there is a power outage or technical error.
- Easy to use and clean: Diverse and simple control system, curtains are easy to clean.
- Meet food safety standards: Produced according to European technology standards. Helping the factory to meet the safety standards in production operations: ISO 14000, ISO 45001: 2018, ROHS, HACCP, GMP…
- Reduce costs when increasing productivity.
- Modern design, ensure aesthetics.
Specifications
Operations
ACCESSORIES
|
Control box |
Background sensor |
Door rails |
Reversing sensor |
|
Electrical cabinets |
Standard optical sensor |
Warning post |
Warning bar |
Remote |
|
Power storage |
Cold storage optical sensor |
|
|
Electrical box protection cabinet |
|
Cold storage sensor |
|
|
|
|
Warning lights
Motor
Card from
Wire jerks
Radar
Roller shaft cover boxINSTALLATION
Technical drawing of high speed spiral door HSD06-NF
| H: Clearance height | ≤ 6000 (mm) |
| W: Clearance width | ≤ 6000 (mm) |
Technical drawing of high speed spiral door HSD06-NF
| H: Clearance height | ≤ 6000 (mm) |
| W: Clearance width | ≤ 6000 (mm) |
| sT: Space waiting for the top of the door | min: 550 (mm) |
| sS: Space waiting for the door wall on the side with the motor and the electrical cabinet. | min: 350 (mm) |
| sR: Space to wait for door wall without motor and electrical cabinet. | min: 150 (mm) |
High speed spiral door HSD06-NF is integrated with modern control technology: radar, remote, background sensor, optical sensor, magnetic sensor, push button, interlock… according to European standards, helping the operation simple, safe suitable for many different environments.
Push button
How to operate: press the control button located on the wall to open the door (close and emergency stop). Then move the car through the door, and the door will close by itself (self-closing time can be adjusted).
Remote control
How to operate: press the button on the remote to open the door (close and emergency stop). Then move the car through the door, the door will close by itself (self-closing time can be adjusted).
Wire jerks
How to operate: pull the control cord located in front of the door to open the door. Then move the car through the door, the door will close by itself (the self-closing time can be adjusted).
Background sensor
How to operate: drive the forklift to the sensing area (size required) to open the door. Then move the car through the door, and the door will close by itself (self-closing time can be adjusted).
Motion sensor
How to operate: when the car or person reaches the motion sensor area in front of the door, the door will move and open the door. Then move the car through the door, and the door will close by itself (self-closing time can be adjusted).
Electromagnetic lock
How to operate: Use a magnetic card or hand sensor to open the door. Then move the car through the door, and the door will close by itself (the self-closing time can be adjusted).
Packaging & Delivery
Packing in wooden/cotton/PE film carton.
