Cold Storage Overhead Doors OHDI3-NF
OHDI3 - NF
Used as the main door or the intersection between the warehouse and the Dock House.
0.3 (m/s)
15 - 20 days
Road transport
Cold Storage Overhead Doors OHDI3-NF is manufactured on demand with European quality standards, considered a solution to prevent cold, support circulation, soundproof and good impact resistance.

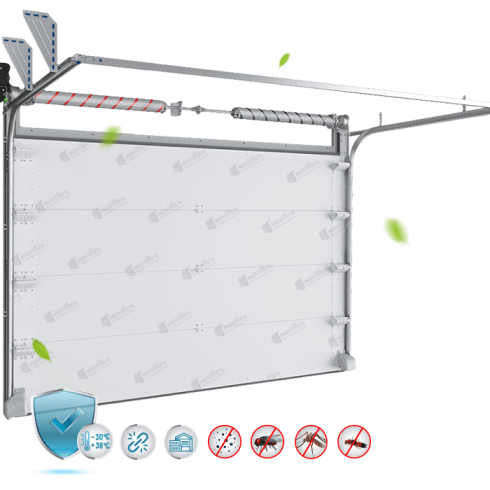

Cold Storage Overhead Door OHDI3-NF is a panel door that operates by the mechanism of sliding panels under rails (square, oblique, vertical) with diverse storage areas with low ceilings, with no need to use rollers.
The door body is assembled by panels, the surface is galvanized steel, in the middle of the sandwich (PU) PIR 2 layers with a thickness of 42 (mm), sound insulation, heat insulation, and impact resistance. It is widely used in frozen warehouses, cold storage, clean rooms, and food processing factories.
ADVANTAGES
- Prevent heat loss: Steel or aluminum material has a thickness of 42 (mm), with a foam density in the middle of 45 kg / m3. Around the door, use a rubber seal to prevent heat, creating a tightness that helps the door well insulate, avoiding direct heat conduction through the outer steel plate.
- Good wind resistance: Good wind resistance of 10 – 12 (28 m / s – 35 m / s), limiting heat loss, and preventing potential risks such as dirt, insects, and food safety…
- Safe device: Emergency notification system when there is a problem, easy to open by hand if there is a power failure or technical error.
- Quiet operation – durable: Powder coating technology according to ASTM standards, helps the door not shake when reaching the highest opening and closing speed.
- Easy to use and clean: Diverse and simple control system, curtains are easy to clean and clean.
- Meet food safety standards: Produced according to European technology standards. Helping the factory to meet the safety standards in production operations: ISO 14000, ISO 45001: 2018, ROHS, HACCP, GMP…
- Modern design, ensure aesthetics.
Specifications
Operations
ACCESSORIES
|
Motor |
Roller shaft |
 |
|
Dual rubber seals prevent heat loss between the door and the wall |
Rubber gasket in contact with the warehouse floor |
Panel surface insulation |
INSTALLATION
Technical drawing of Cold Storage Door – Industrial OHDI3-NF
| H | ≤ 8000 (mm) |
| W | ≤ 8000 (mm) |
Technical drawing of Cold Overhead Door Cold – Industrial OHDI3-NF
| H | ≤ 8000 (mm) |
| W | ≤ 8000 (mm) |
| sT: Space waiting for the top of the door. | min: 550 (mm) |
| sS: Space waiting for the door wall on the side with the motor and the electrical cabinet. | min: 350 (mm) |
| sR: Space to wait for door wall without motor and electrical cabinet. | min: 150 (mm) |
Drawing board of vertical sliding rails OHDI3 – NF
The vertical rail is a type of door operating vertically, not in a roll, meeting the factors such as insulation, electricity, noise prevention, dust and insects.
Drawing board of slant sliding rails OHDI3 – NF
Oblique rails are combined sliding doors, designed according to modern technology, with each door made of pieces with links linked to Palang and propulsion motors.
Drawing board of perpendicular sliding rails OHDI3 – NF
Perpendicular rail is a type of perpendicular sliding door, designed with high technology, with absolute safety, outstanding advantages, helping users to be more satisfied with the product.
- H (mm) Clearance height.
- h (mm) Headquarters height.
- B (mm) Clearance width.
- A (mm) Track angle height.
- Ab (mm) Height of shaft and empty.
- A1 (mm) Vertical groove height.
- E (mm) Horizontal groove length.
- Db (mm) Torsion spring operating space.
- S (mm) Clearance of room minimum.
- Q (mm) Axle opening position.
Cold Storage Door – Industrial OHDI3-NF has 3 main ways of operation: push button on the controller, magnetic sensor/sensor, and zipper according to European standards, making operation simple and safe. many different environments.
Packaging & Delivery
Packing in wooden/cotton/PE film carton.
