Full Vision Overhead Door OHDI2-NF

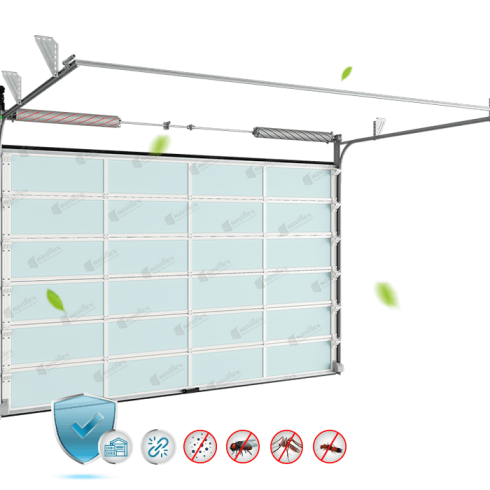

gioi-thieu-sp-OHD02 (1)
Area of ​​use:
At the main door
Opening / losing speed:
0.3 m/s
Lead time:
15 - 20 days
Delivery method:
Road transport

Full Vision Overhead Door OHDI2-NF is manufactured on demand with European quality standards, considered a solution to ensure security, good light penetration, impact resistance and optimal electrical insulation.

Full vision overhead door OHDI2-NF is a type of civil door used in many showrooms. The overhead door body is made of aluminum alloy and transparent mica, around the door using a rubber seal to prevent heat, creating tightness.

Rollers integrated with auxiliary wheels help open and close flexibly to minimize noise. The counterbalance spring reduces the working load for the motor. Mica sheet has good light penetration, gives about 98% light through, and has an even gloss, iridescent, smooth, shiny surface bringing high aesthetics.


  • Good light penetration: Transparent mica and aluminum alloy door panels are wind resistant, with good light penetration of about 98% light penetration.
  • Good wind resistance: Good wind resistance of 10 (28 m / s), limiting heat loss, and preventing potential risks such as dirt, insects, and food safety…
  • Safe device: Emergency notification system when there is a problem, easy to open by hand if there is a power failure or technical error.
  • Persistent activity: The door frame is made of galvanized steel, which prevents the door from shaking at the highest opening and closing speed.
  • Easy to use and clean: Diverse and simple control system, curtains are easy to clean and clean.
  • Meet food safety standards: Produced according to European technology standards. Helping the factory to meet the safety standards in production operations: ISO 14000, ISO 45001: 2018, ROHS, HACCP, GMP…
  • Modern design, ensure aesthetics.
Condition: New
Brand name: Naviflex
Place of origin: Vietnam
Size: 8000 x 8000 (mm)
Open/close cycles: 10,000 – 25,000 (cycles)
Material: Transparent Mica
Door plate thickness: 42 (mm)
Color: Milky white / On request
Technology: Powder coating ASTM standard
Temperature range: Above +10˚C
Voltage: 1 phase 220 ± 10% V, 50 / 60HZ or 3 phase 380 ± 10% V, 50 / 60HZ
Wattage: 0.37 – 1.5 (Kw)
Safe device: Cable break device & Obstacle sensor
Control: Push button on electrical cabinet / Hand chains
Warranty: 1 years
Installation location:




Selling Polycarbonate doors



Coupling between 2 semi-doors



           Counterweight torsion springs




                                         Hand pull the door



Technical drawing of Full Vision Overhead Door OHDI2-NF

H ≤ 8000 (mm)
W ≤ 8000 (mm)

Technical drawing of Full Vision Overhead Door OHDI2-NF

H ≤ 8000 (mm)
W ≤ 8000 (mm)
sT: Space waiting for the top of the door. min: 550 (mm)
sS: Space waiting for the door wall on the side with the motor and the electrical cabinet. min: 350 (mm)
sR: Space to wait for door wall without motor and electrical cabinet. min: 150 (mm)

Drawing board of vertical sliding rails OHDI2-NF

The vertical rail is a type of door operating vertically, not in a roll, meeting the factors such as insulation, electricity, noise prevention, dust and insects.


Drawing board of slant sliding rails OHDI2-NF

Oblique rails are combined sliding doors, designed according to modern technology, with each door made of pieces with links linked to Palang and propulsion motors.


Drawing board of perpendicular sliding rails OHDI2-NF

Perpendicular rail is a type of perpendicular sliding door, designed with high technology, with absolute safety, outstanding advantages, helping users to be more satisfied with the product.


  • H (mm) Clearance height.
  • h (mm) Headquarters height.
  • B (mm) Clearance width.
  • A (mm) Track angle height.
  • Ab (mm) Height of shaft and empty.
  • A1 (mm) Vertical groove height.
  • E (mm) Horizontal groove length.
  • Db (mm) Torsion spring operating space.
  • S (mm) Clearance of room minimum.
  • Q (mm) Axle opening position.



Full Vision Overhead Door OHDI2-NF has 3 main ways of operation: push button on the controller, magnetic sensor/sensor, and zipper according to European standards, making operation simple, safe, and suitable for many different environments.


Packaging Details:

Packing in wooden/cotton/PE film carton.
