Roller Shutter Door SD01-NF

Q: Packaging & Delivery

Packaging Details: Packing in wooden/cotton/PE film carton.

Model:
SD01 - NF

Area of use:
Commonly used in civil houses and some warehouses to preserve goods…

Opening / losing speed:
0.3 (m/s)

Lead time:
15 - 20 days

Delivery method:
Road transport

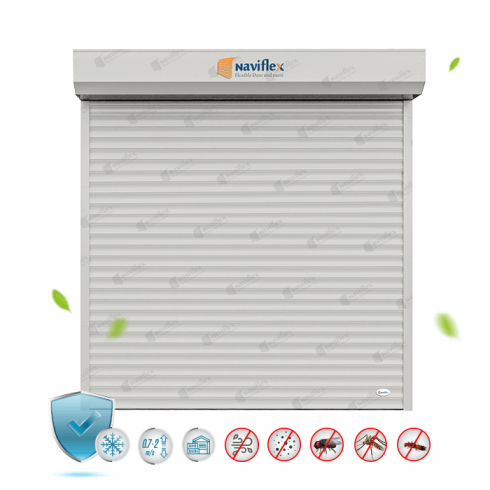

Roller Shutter Door SD01-NF is manufactured on demand with European quality standards, considered a solution to ensure security, support circulation and good wind resistance.

The roller shutter door has a solid body structure with a thickness of 0.6 – 1.0 mm with steel or stainless steel to ensure safety and durability when used. In addition, the door is also designed according to the size of the door from ≤ 8,000×8,000 mm, to meet the maximum needs and wants of customers. At the same time good impact resistance, sound insulation, and minimizes noise. Doors are commonly used in warehouses, factories…

ADVANTAGES

Good wind resistance: As a rolling door with a 0.6 – 1.2 mm, thick steel nan door with a 0.3 m / s opening and closing speed, the door has good wind resistance and withstands different weather conditions to save warranty costs repair.
Persistent activity: The door frame is made of galvanized steel, which prevents the door from shaking at the highest opening and closing speed.
Safe device: Emergency notification system when there is a problem, easy to open by hand if there is a power outage or technical error.
Easy to use and clean: With the diverse and simple control system, the curtains are easy to clean.
Meet food safety standards: Produced according to European technology standards. Helping the factory to meet the safety standards in production operations: ISO 14000, ISO 45001: 2018, ROHS, HACCP, GMP…
Modern design, ensure aesthetics.

Specifications

Condition: New

Brand name: Naviflex

Place of origin: Vietnam

Size: 6000×6000 (mm)

Open/close cycles: Updating

Material: Steel

Door plate thickness: 84 (mm)

Color: Cream (standard color) / On request

Technology: Powder coating ASTM standard

Temperature range: 0 ̊C – 50 ̊ C

Voltage: 1 phase 220 ± 10% V, 50 / 60HZ

Wattage: Based on door area and usage environment

Safe device: Cable break device & Obstacle sensor

Control: Push Button / Remote

Warranty: 1 years

Operations

Structure:

Installation location:

ACCESSORIES

Axis rollers

motor-1200-2000kg-HSD05-NF

Motor 1200 – 2000kg

nan_cua_0.6-1mm-SD01-TC

Door spokes 0.6 – 1,2 mm

Door rails

INSTALLATION

Technical drawing of Roller shutter door SD01-NF

H: Clearance height	≤ 10000 (mm)
W: Clearance width	≤ 6500 (mm)

Technical drawing of Roller shutter door SD01-NF

H: Clearance height	≤ 10000 (mm)
W: Clearance width	≤ 6500 (mm)

Operation:

Roller shutter door SD01-NF is integrated with modern control technology: push button, sensor… according to European standards, helping the operation simple, safe suitable for many different environments.
