NAFUJI AIR CURTAIN

Model:

Area of use:

Opening / losing speed:

Lead time:

Delivery method:

Content:

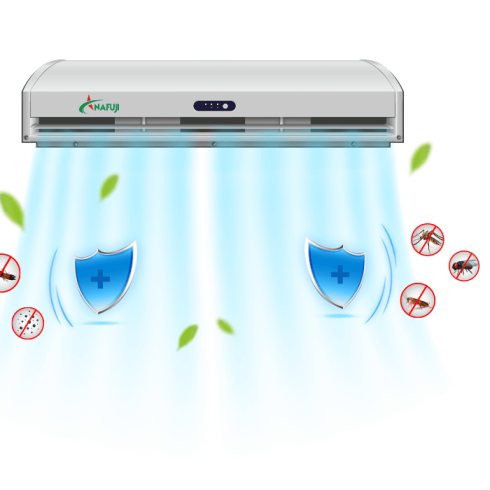

NAFUJI AIR CURTAIN

Description:

The air curatin is an energy-saving solution, creating a barrier with the air at the entrance, preventing cold air from escaping. At the same time, insects, dirt, and odors cannot penetrate the inside.

Advantages:

Resists cold air loss; Prevent dirt, insects; Clean air filter; Energy saving; Health safety.

[addthis tool=”addthis_inline_share_toolbox_vqf4″]

PRODUCT CONSULTING

PRODUCT DETAILS

DESCRIPTION

STRUCTURE

SPECIFICATIONS

MOUNTING POSITION

DESCRIPTION

The air curtain calso known as the wind-cut fan is often used installed at the entrance to prevent cold air from being lost out, maintaining a constant temperature, thereby helping to save energy consumption air-conditioner.

With a unique design of an inlet, an air blow door and a system of 03 centrifugal motors (1 phase 50 Hz – 220V), creating a high blowing speed and amount of wind, forming a closed “air screen”, sucks dirty air out, prevents insects from entering, ensures the inside environment is always clean. Helping to move more convenient when there are no doors to restrict visibility and safety for passersby.

To meet the absolute needs of customers, Nafuji offers two types: The Nafuji air curtain and the Nedfon air curtain.

Certificate-Safety-Food

ADVANTAGES OF AIR CURTAIN

Prevent cold air from escaping to save energy consumption of the air conditioner;

Pushes bacteria and dirt out for clean air;

The fan body is coated with electrostatic powder coating, preventing electric leakage and rusting;

Propeller material from high quality ABS, automatically balanced when reaching great speeds;

The noise level from 53-65dB does not affect the surrounding environment too much;

Save energy consumption, the motor can operate continuously for 5000 hours. The used voltage is 220v/50Hz/1phase;

Easy to install, replace and clean;

Luxurious and delicate design suitable for any space.

[devvn_ihotspot id=”5241″]
shadow-e1594365628680

NAFUJI AIR CURTAIN

Machine body
Made of powder coated iron

Motor
5000 hours continuous operation

Length
1500 mm

Blowing height
5.5 m

Wattage
720 W

Blowing speed
21-22 m/s

Amount of wind blows
2500 m3/h

Noise level
56 dB

Fan size
1560mm x 260mm x 290mm

Weight
18.7 kg

Voltage used
220V/50Hz/1phase

NEDFON AIR CURTAIN

Machine body
Made of powder coated iron

Motor
5000 hours continuous operation

Length
1200 mm

Blowing height
3.5 m

Wattage
Short: 186W
Short: 238W
High: 322W

Blowing speed
10-15m/s

Amount of wind blows
1020 m3/h

Noise level
54 dB

Fan size
1200mm x 230mm x 212 mm

Fan size
18.7 Kg

Origin
Malaysia

Voltage used
220V/50Hz/1phase

MOUNTING POSITION

Installation position is the decisive factor for the air curtain to operate at full capacity and most effectively:

– The fan is suitable for installing at all door positions (left, right, center) due to the distribution of the motor system throughout the fan.

Fans are usually mounted horizontally above the doors to prevent cold loss, dust, and insects.

The number of air curtain depends on the area of each area:

For commercial centers: Large area, frequent flow of people in and out, large wide doors need to use many consecutive fans to prevent heat loss out effectively.

For the factory: It is necessary to choose a fan with the length equal to or longer than the width of the door. Install immediately the door to the warehouse to prevent cold loss, protect the products in the warehouse to always meet the standards.

[devvn_ihotspot id=”5297″]

THE SOLUTION TO EFFECTIVELY PREVENT HEAT LOSS

The operating blower forms an air curtain. Therefore, the windscreen fan is an effective solution to help:

– Prevent the loss of cold air out when the air conditioner was operating at full capacity;

– Prevent the penetration of insects, dust from outside affecting the air and product quality;

– Create comfort for people when going through the door;

– Save space by no need to install doors.

WHY CHOOSE NAFUJI AIR CURTAIN?

In order to clearly see the advantages and effective uses of using air curtain compared to not using them, we will clearly see by:

USE AIR CURTAIN

Keep the heat in the warehouse always stable and insulated from the outside environment.

The quality of goods in the warehouse is always guaranteed and meets the standards.

Dirt, bacteria are removed, cannot penetrate into the warehouse.

Save space because there is no need to install the freezing shelf door.

Air conditioning system works better, consumes less power.

DO NOT USE AIR CURTAIN

Cold air is lost out, obscuring visibility during cargo movement.

Goods damaged because the prescribed temperature is not ensured.

Dirt, bacteria attack, affecting the quality of goods, causing large loss of costs.

Installing additional prevent cold evaporation door, causing inconvenience in entering and leaving the warehouse.

Air-conditioning system operates at full capacity but does not provide enough cold, reducing life.

APPLICATION

Air curtain are usually installed in factories with frozen warehouses, food processing factories, agricultural products, commercial centers, hospitals, restaurants, hotels… To create ventilation, save money energy of the air conditioner and effectively prevent cold steam loss.

DISTRIBUTION RANGE

With the function of effectively preventing the loss of cold air, the Nafuji air curtain has been attracting corporate customers nationwide such as:

North: Ha Noi, Bac Ninh, Vinh Phuc, Hung Yen, Bac Giang, Hai Phong, Thai Nguyen, Phu Tho …

Central: Da Nang, Quang Nam, Quang Ngai, Khanh Hoa, Binh Thuan…

South: Ho Chi Minh, Long An, Can Tho, Soc Trang, Binh Duong, Dong Nai, Binh Phuoc, Vung Tau…

You are looking for a safe, efficient and high-quality air curtain, please contact Naviflex quickly for advice and support in the fastest time.
